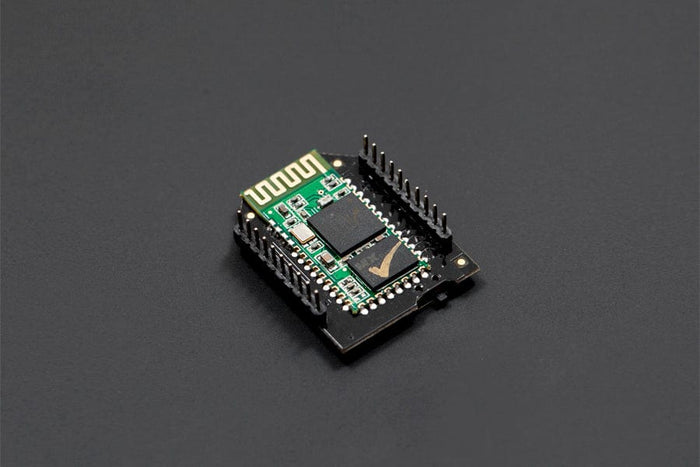

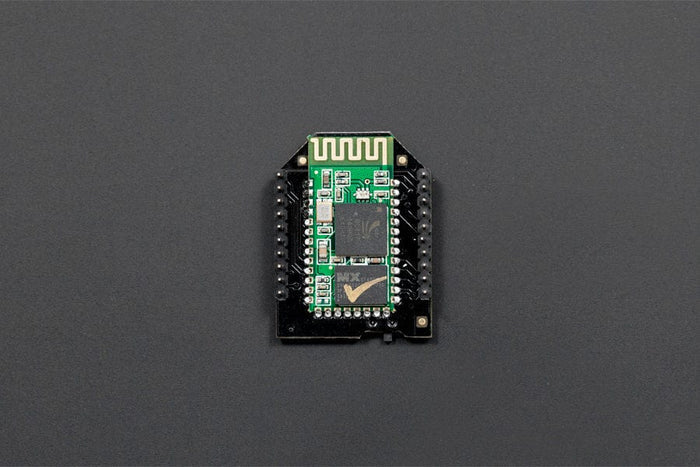

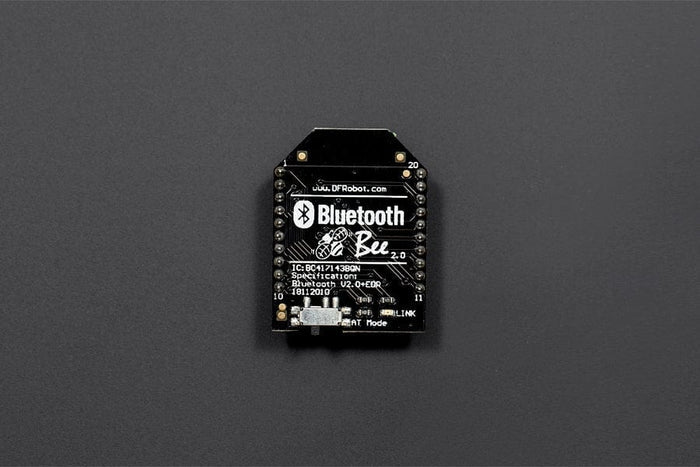

Bluetooth 2.0 Bee Module For Arduino [Discontinued]

This DFRobot Bluetooth Bee Bluetooth wireless module adapts XBEE design. It has a compact size, the pinout is compatible with XBEE which is suitable for all kinds of microcontroller such as Arduino who have 3.3V power out, also the module supports AT commands for parameter setting. (NOTE: You have to use a XBEE adapter for parameter setting. )

The Bluetooth Bee modules comes with an on-board antenna, the antenna provides better signal quality. It acts like a transparent serial port, which works with a variety of Bluetooth adapter and Bluetooth phone.

The module has been tested with all the Bluetooth adapter on the market matching to use (with the Bluetooth, including laptops and mobile phones).

This arduino bluetooth module fits Gravity Arduino IO Expansion shield, Gravity Mega Sensor Shield, Romeo V2 and DFRduino Leonardo which has xbee socket

		Bluetooth 2.0 Module V3 For Arduino	Bluetooth 2.0 Bee Module For Arduino	Bluno Link - A USB Bluetooth 4.0 (BLE) Dongle	Bluetooth Adapter Mini
SKU	TEL0073	TEL0026	TEL0023	TEL0087	TEL0002
BLE Chip	TI CC2540	CSR BC417143	CSR BC417143	TI CC2540	—
Frequency	2.4GHz	2.4 ~ 2.48GHz unlicensed ISM band	2.4 ~ 2.48GHz unlicensed ISM band	2.4GHz	2.4 ~ 2.48GHz FHSS
Transfer rate	1Mbps GFSK	Asynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps	Asynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps	1Mbps GFSK	3Mbps
BLE protocol	V4.0	V2.0 + EDR	V2.0 + EDR	V4.0	V2.0
Modulation	GFSK	GFSK	GFSK	GFSK	FHSS
Power consumption	10.6mA average, ready mode: 8.7mA	—	—	10.6mA average, ready mode: 8.7mA	—
Sensitivity	-93dBm	≤-84dBm	≤-84dBm	-93dBm	≤-84dBm
Working Voltage	3.3V	+3.5 V ~ +8 V DC and 3.3V DC/50mA	3.3V	3.3V	—
Operating temperature	-40 ℃ ~ +85 ℃	-20 ℃ ~ +55 ℃	-20 ℃ ~ +55 ℃	-10 ℃ ~ +85 ℃	-20℃ ~ +55℃
Transmission distance	30m	20 ~ 30m	20 ~ 30m	10 ~ 20m	<10m
Dimension	32*22mm	40*20*13mm	32*24*9mm	32mm * 16mm	20*16*8mm
Weight (g)	10	10	12	10	10
AT command to debug the BLE	√	√	√	√	—
master-salve machine switch	√	√	√	√	—
Transparent transmission	√	√	√	√	—
Wireless programming	√ (Available for Bluno series)	—	—	√	—
iBeacons	√	—	—	—	—
BLE HID	√	√	√	√	√
Mobile App Control	√	√	√	—	—
Key Features	support Android and IOS applications,open source code,suitable for secondary development by the user	Compatible with APC220 communication interface, can be directly used in I/O Expansion Shield, Romeo, XBoard and etc,.	It can be plugged into the Arduino controller using the XBEE base for Bluetooth wireless control.	Standard USB interface. Support for firmware update via USB. Install Arduino UNO USB driver, default host mode.	USB2.0 standard interface. supports the native Windows Bluetooth stack.
