DIN-RAIL Kit Type-2 - Perpendicular to Rail - for Raspberry Pi [Discontinued]

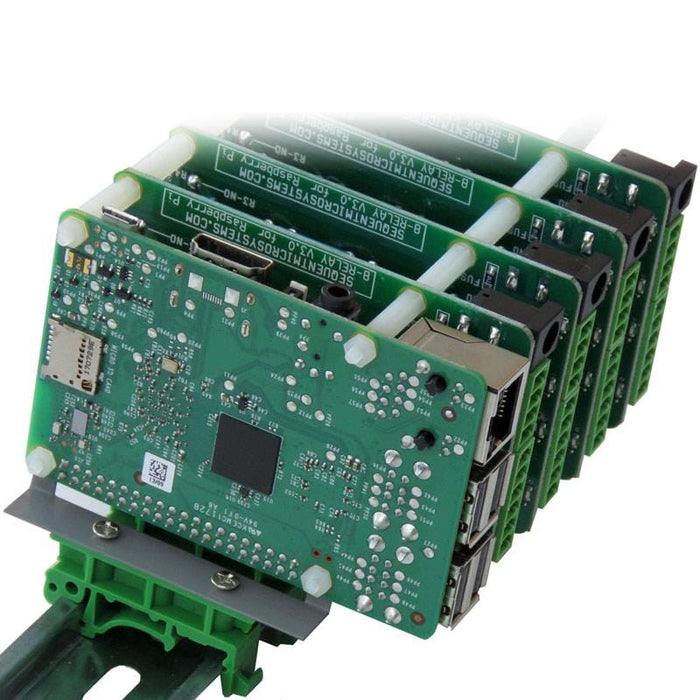

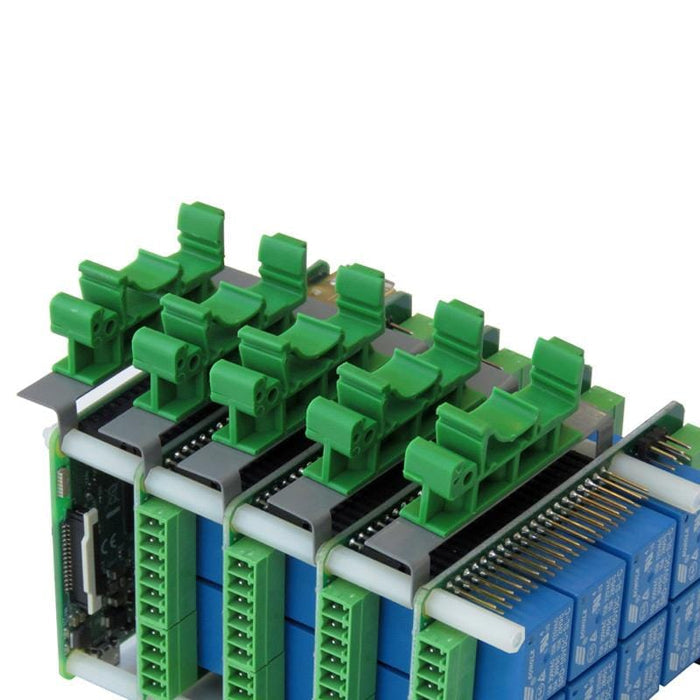

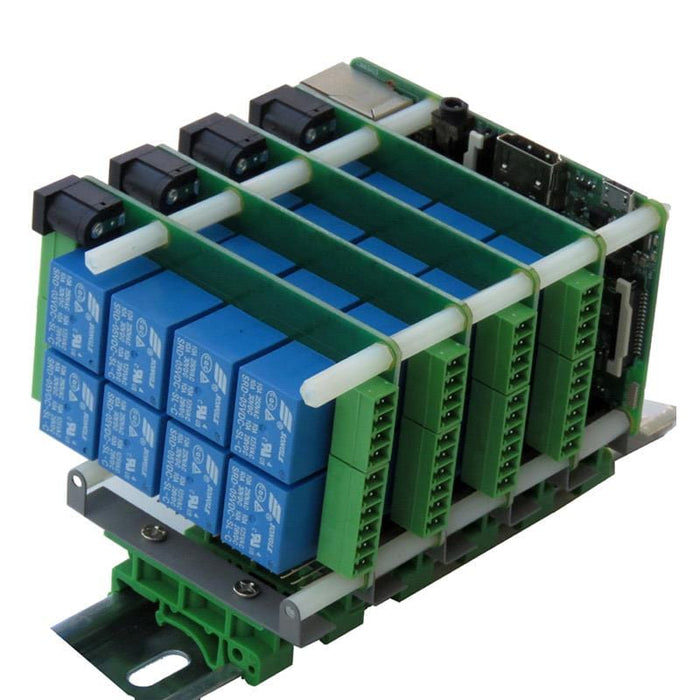

This kit permits installation of all versions of Raspberry Pi, from Zero to 4, and any number of add-on cards, perpendicular to a DIN Rail.

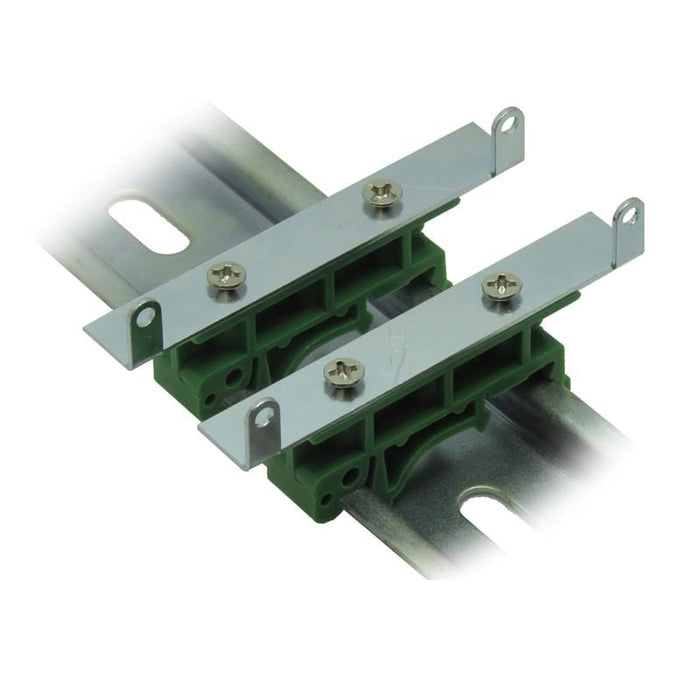

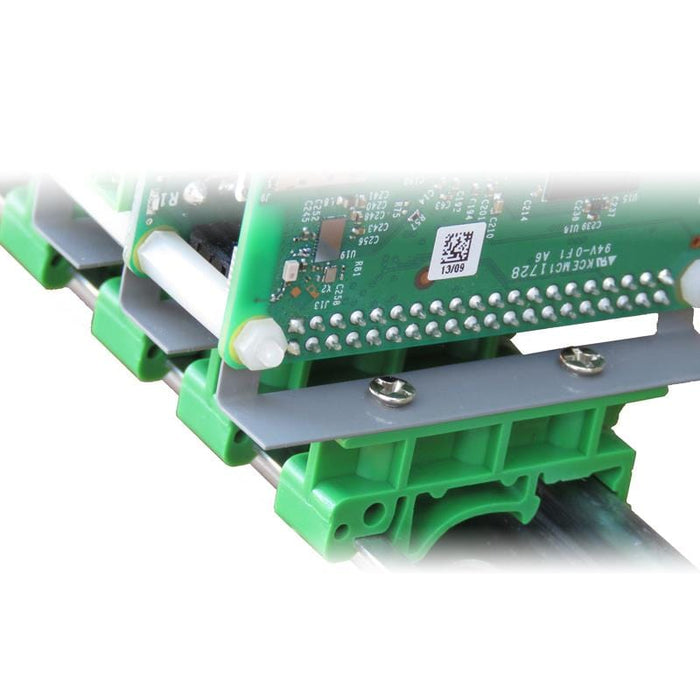

Each card is secured with a steel bracket, providing good mechanical stability. For a parallel to DIN-Rail installation, see our DIN-RAIL Kit Type 1.

One kit contains all the hardware for mounting one Raspberry Pi and one add-on card. Each additional kit will install two more add-on cards on the DIN-RAIL. The mounting plate is made out of 0.8mm steel with powder-coated finish.

For any technical questions about this product please email support@sequentmicrosystems.com

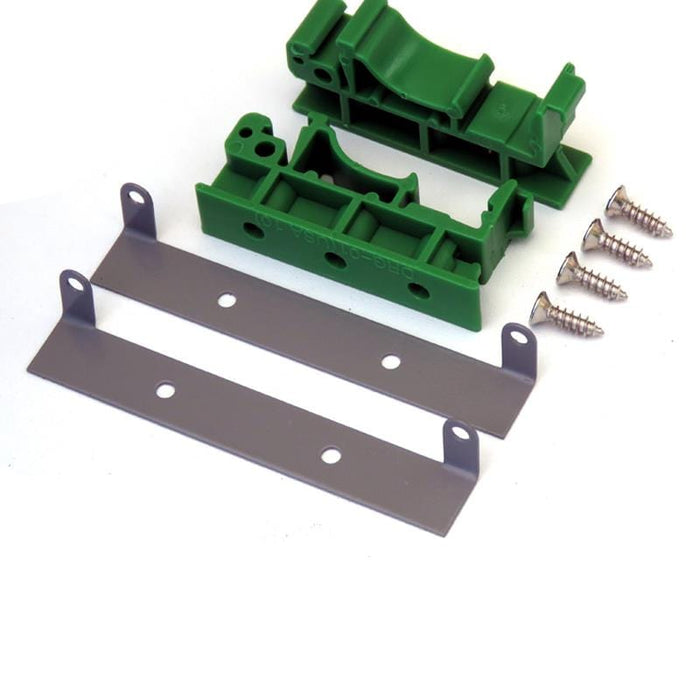

Kit Contents

• Two Plastic DIN Rail Brackets with Screws
• Two Custom Steel Plates

Dimensions and Weight

• Weight: 25 g
• Dimensions: 5cm×6cm×1cm

Custom steel plate dimensions
