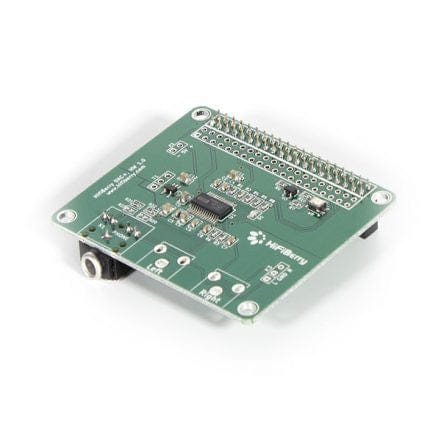

HiFiBerry DAC+ Phone [Discontinued]

The HiFiBerry DAC+ Phone is a high-resolution digital-to-analogue converter for the Raspberry Pi (newer models with 40 pin GPIO connector).

This is a special sound card for the Raspberry Pi, optimized for one specific use case: the best audio playback quality.

The Phone version uses a phone jack instead of the RCA connectors for the smallest footprint possible.

We also stock the DAC+ Standard, DAC+ Light and DAC+ Pro!

Facts

• Dedicated 192kHz/24bit high-quality Burr-Brown DAC with external low-jitter clock for best sound quality
• Hardware volume control. You can control the output volume using “alsamixer” or any application that supports ALSA mixer controls.
• Connects directly to the Raspberry Pi, no additional cables needed
• No soldering, comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi, it conforms to the Raspberry Pi hardware-attached-on-top (HAT) specification.
• Compatible with all 40-pin Raspberry Pi models
• Directly powered from the Raspberry Pi, no additional power supply
• Ultra-low-noise voltage regulator for optimal audio performance
• Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi
